- Ideal for printing applications, with high tack and adhesion to most paper stocks
- Double sided adhesion increases dimensional stability for easy handling during print splicing
- Excellent UV, moderate temperature and good humidity resistance to ensure performance in a variety of situations
- Densified kraft paper liner ensures easy handling
- Good adhesion to a variety of substrates, including low and high surface energy substrates

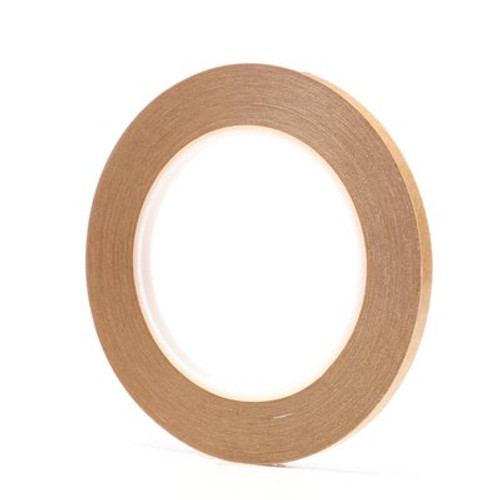

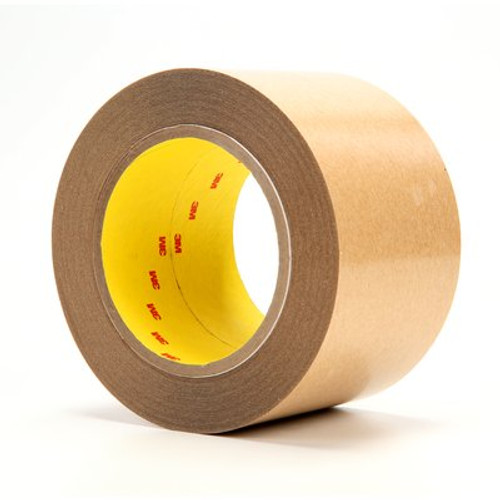

3M™ Double Coated Tape 415 is a double coated tape that offers a balance of high initial adhesion and good holding power on a variety of substrates, especially paper. Double sided adhesion increases dimensional stability for easy handling, making it an ideal choice for both zero speed and flying splices during printing.
3M™ Double Coated Tape 415 is a 4.0 mil double coated polyester tape with 3M™ Acrylic Adhesive 400 mounted on a 60. lb densified kraft paper liner. It offers excellent UV resistance, with good temperature and humidity resistance for high performance splicing during rigorous printing applications. This tape will perform well up to 180°F/82°C in the short term, and up to 150°F/65°C for days or weeks. It adheres well to a variety of high and low surface energy substrates including metals, glass, wood, paints and many plastics, as well as most grades of paper, films and foils, and clay coated and corrugated paper stock.
- High-speed flying splices on most grades of paper
- Zero speed splices on most grades of paper
- Web splicing
- Core starting
- Films and foils
Adhere with Confidence
3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system. It features an excellent balance of good initial adhesion (quick stick) and good shear holding power. Shear strength is the measure of pull force directed across the bonded surface, forcing the two surfaces to slide over each other. 3M™ Adhesive 400 demonstrates a consistently strong bond across a range of temperatures, up to 250°F/121°C. A thin, tough, polyester film carrier between the adhesive layers improves the handling and strength of the tape. By using a robust 60 lb. densified kraft paper release liner, this tape provides reliable performance for industrial applications such as die-cutting and automated dispensers.
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in construction, fabrication, arts and hobby.
